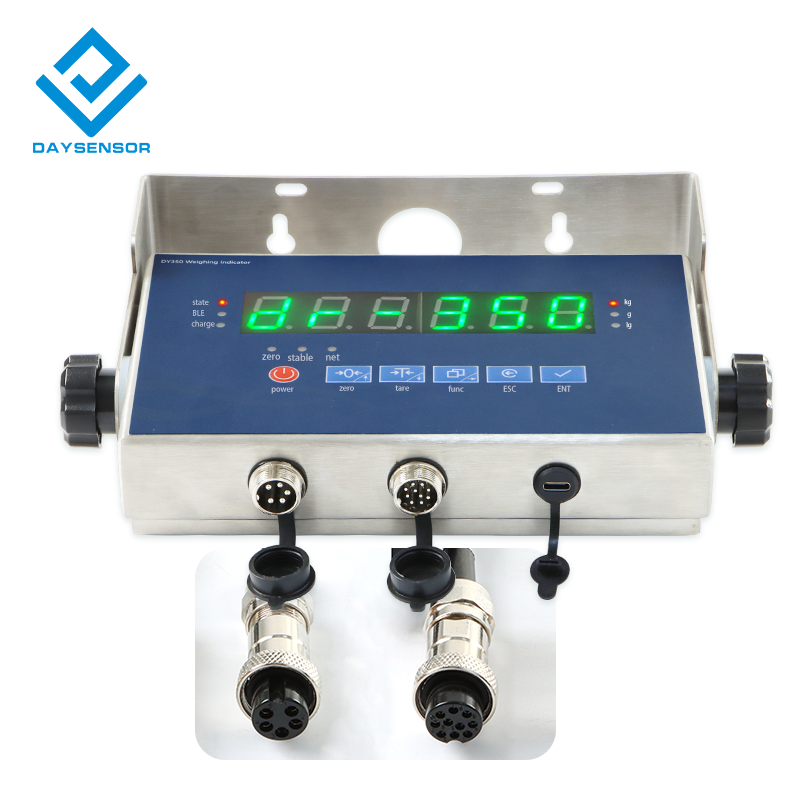

High-Precision Weighing Display Controller, Batching Controller, Quantitative Packaging Force Value Display Instrument DY350

High-Precision Weighing Display Controller, Batching Controller, Quantitative Packaging Force Value Display Instrument DY350

Model:
DY350
Brand:
DAYSENSOR

Quantity:
Range:	Standard Standard+Bluetooth module RS232 RS232+Bluetooth module
Availability:





Inquire Add to Basket

Weighing Controller Batch Controller Multi-Function Display Packaging Scale Indicator Precision Force Meter

Product Description

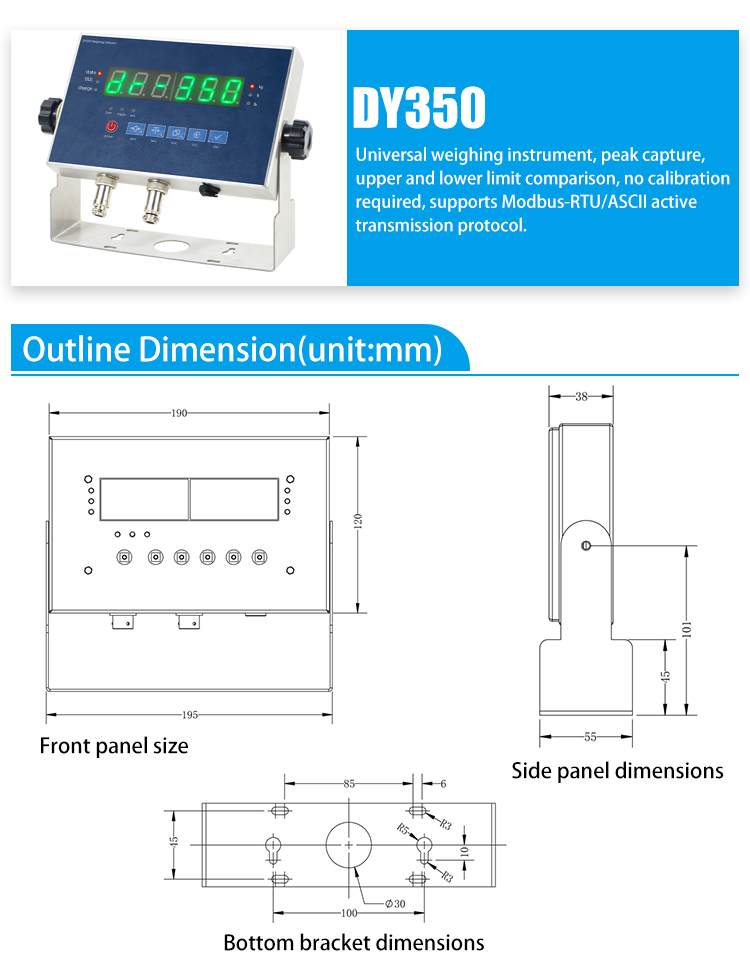

英文-DY350详情页_01

DY350 Technical specifications
supply electricity	3.7V 4000mAh lithium battery
humidity	Relative humidity <90% (no condensation)
temperature	Operating environment: 20℃ to 50℃, temperature drift less than 10ppm
sampling rate	Up to 3200 times per second;
Digital Communications	Optional RS485 isolation communication, supporting Modbus-RTU protocol and ASCII active reporting protocol, baud rate 2400~115200 Bit/
Bluetooth wireless communication	Wireless communication range>30m (in clear and open environment
on-off input	Two NPN digital inputs, used for zeroing or startup
Switching Output	Upper and lower limit of three-channel OC output (NPN)
Display division	The measured value ranges from-99999 to 999999
function	Measurement function: proportional measurement method; rapid acquisition, filtering, scaling, and display of measurement signals
	Upper and Lower Limit Comparison
	Peak and valley capture function
	Power-on reset, manual reset (button or communication), automatic reset
	Zero tracking and creep tracking
	Sensor limit exceeded

Features

* Bluetooth: Wireless communication range>30m (in clear and open environment)
* Type-C port: Rechargeable with 5V 2A charger
* Peak capture
* Upper and lower limits comparison
* Power-on/Automatic/manual reset, zero position tracking, creep tracking
* RS485 communication: Supports Modbus-RTU, ASCII, and HEX active transmission protocols
* High sampling rate: up to 3200Hz
* Switching functions: three upper/lower limit OC outputs, two NPN-type inputs
* Low power: 30 hours of continuous operation and 6 hours of charging

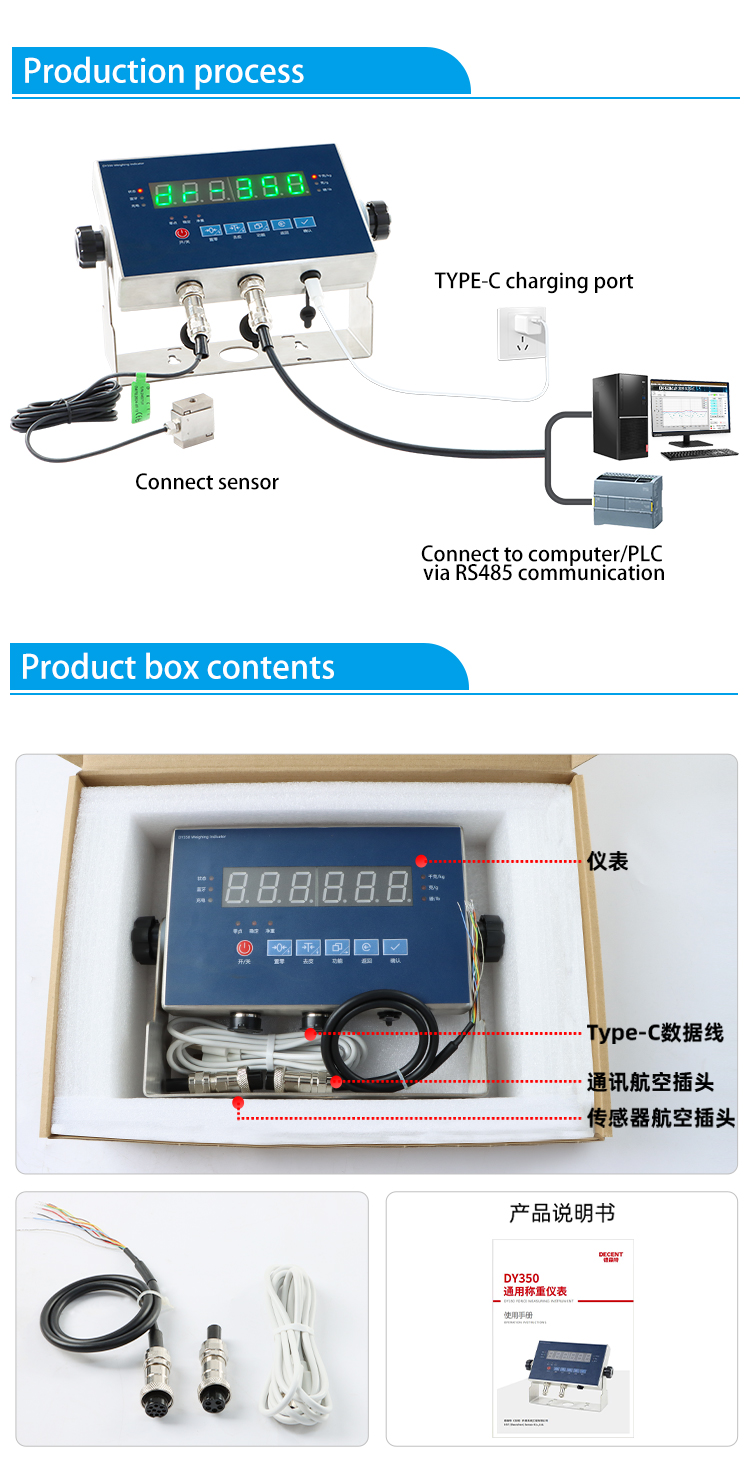

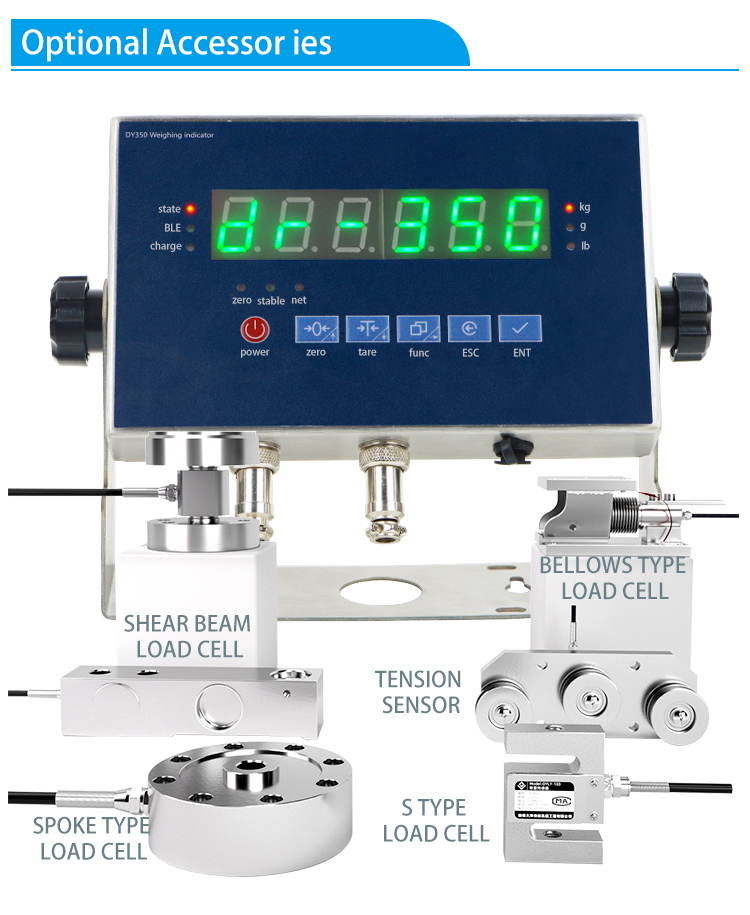

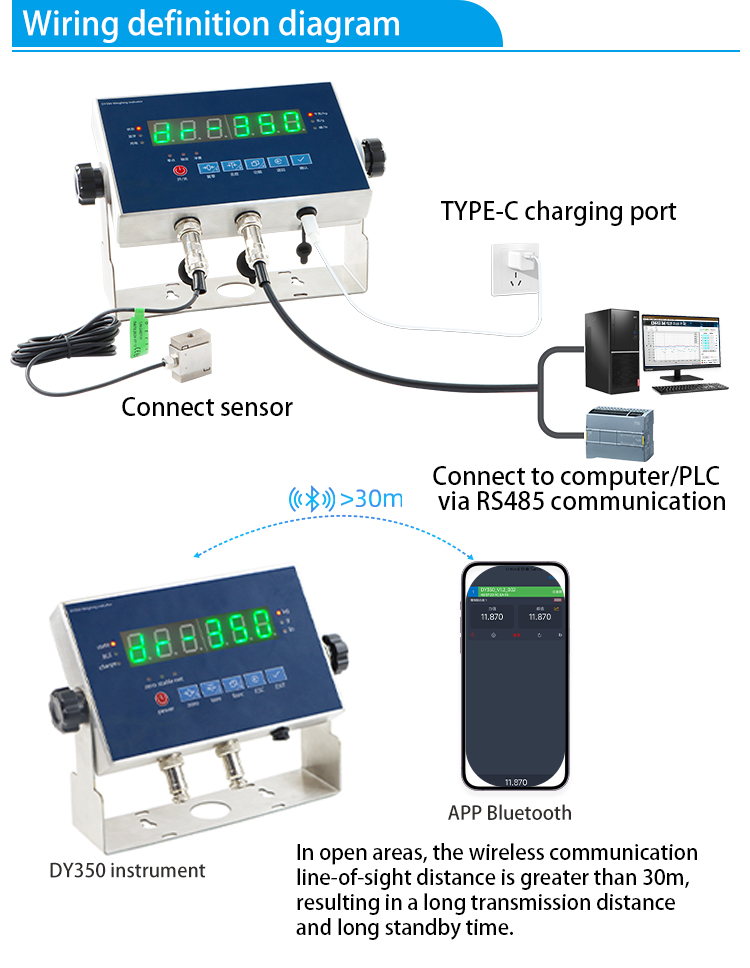

英文-DY350详情页_02 英文-DY350详情页_03 英文-DY350详情页_04 英文-DY350详情页_05 英文-DY350详情页_06 英文-DY350详情页_07 英文-DY350详情页_08
