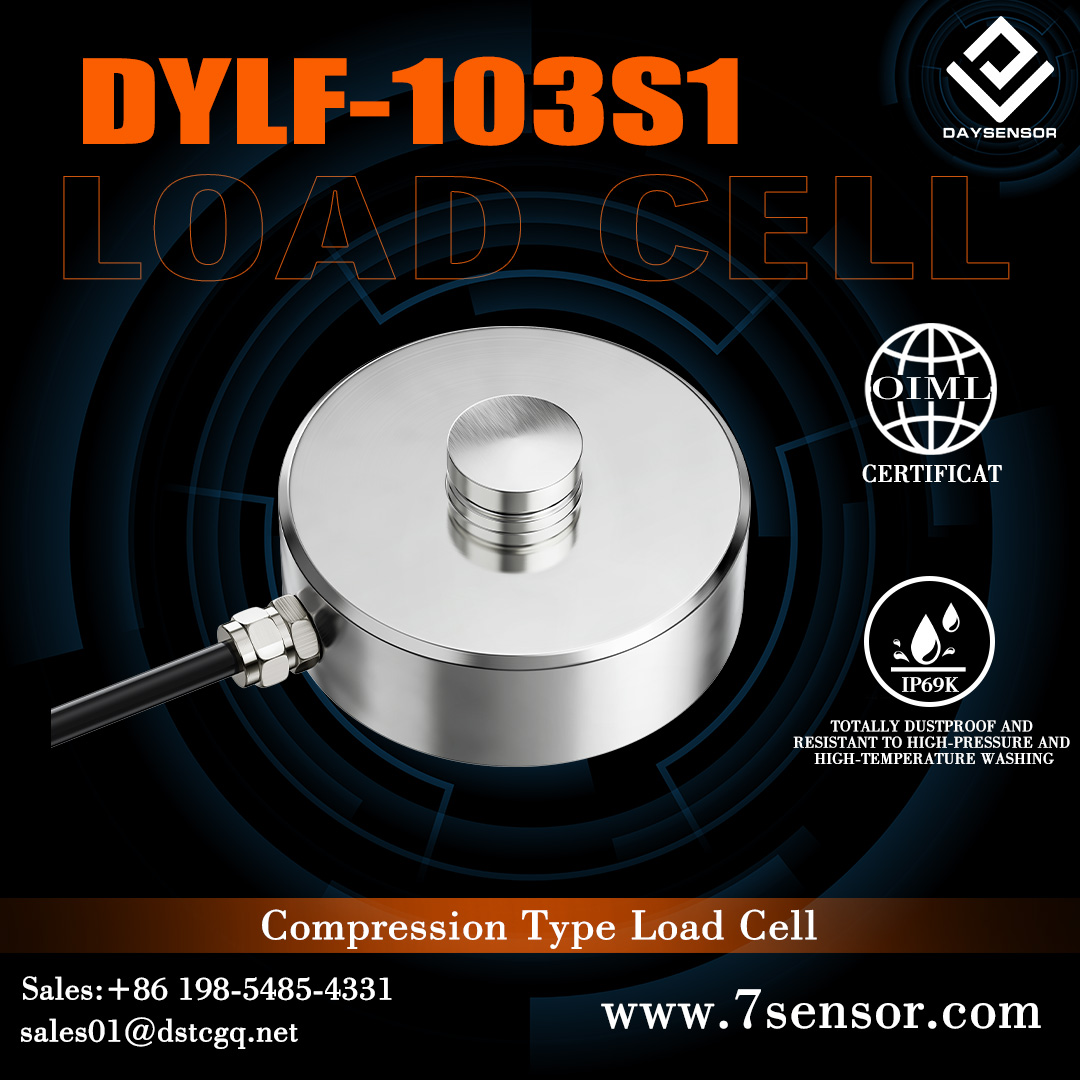

Accuracy class:C3 DYLF-103S1 Compression Type Load Cell

Views: 0     Author: Daysensor     Publish Time: 2025-07-23      Origin: Daysensor

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

产品渲染-DYLF-103S1-1

Special features

● Stainless steel construction

● Max. capacities from 0.5t to 100t

● Complies with OIML R60 regulations up to 3000d divisions

● Hermetically sealed (IP68; IP69K)

● Low profile and small deflection

● Applications: Container and tank weighing; and Industrial batching control system


Option

● Exterior braided armor covered cable；7mm O.D.

● Explosion-proof versions

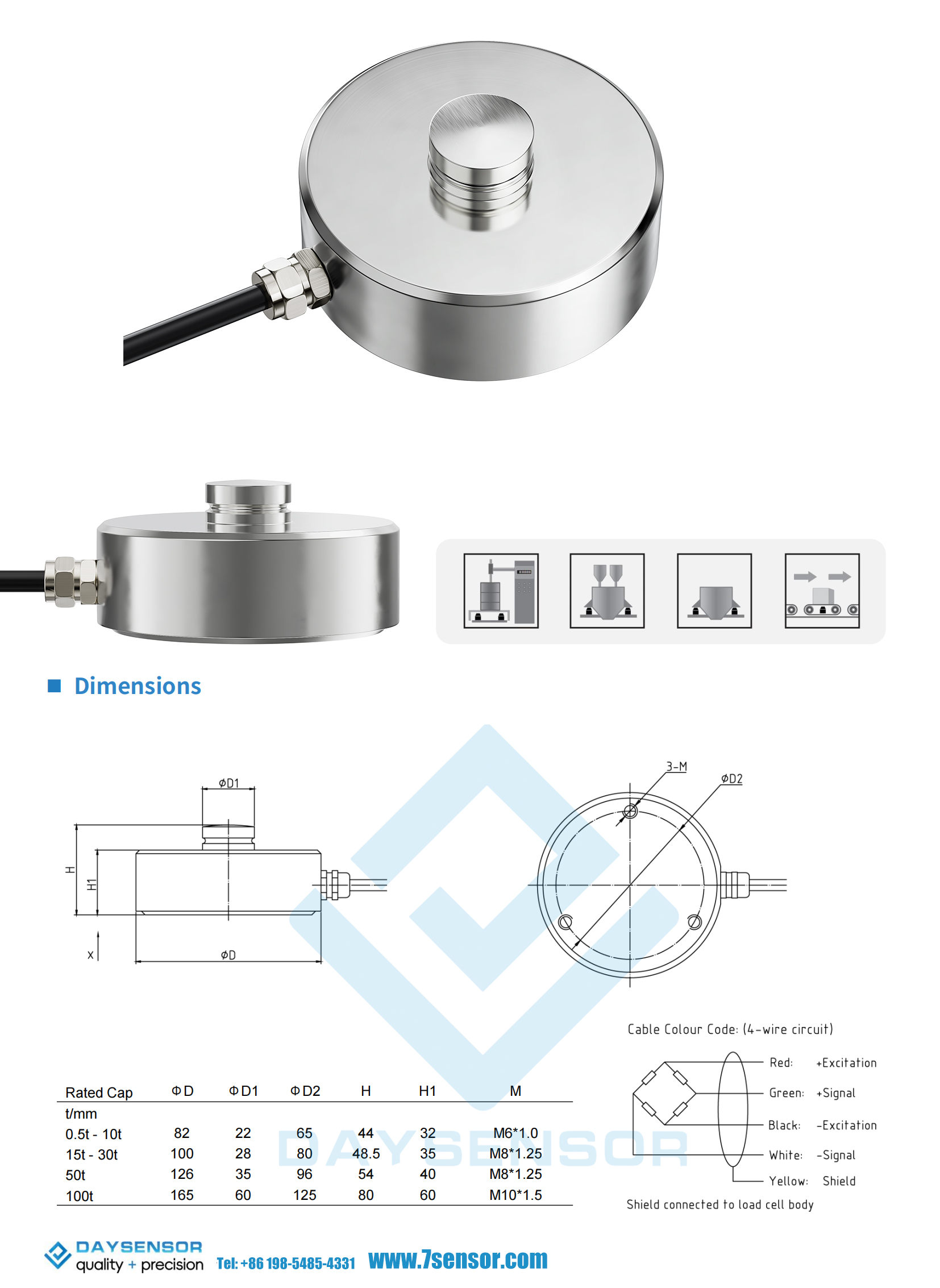

Product Description


英文-DYLF-103S1系列_01_02

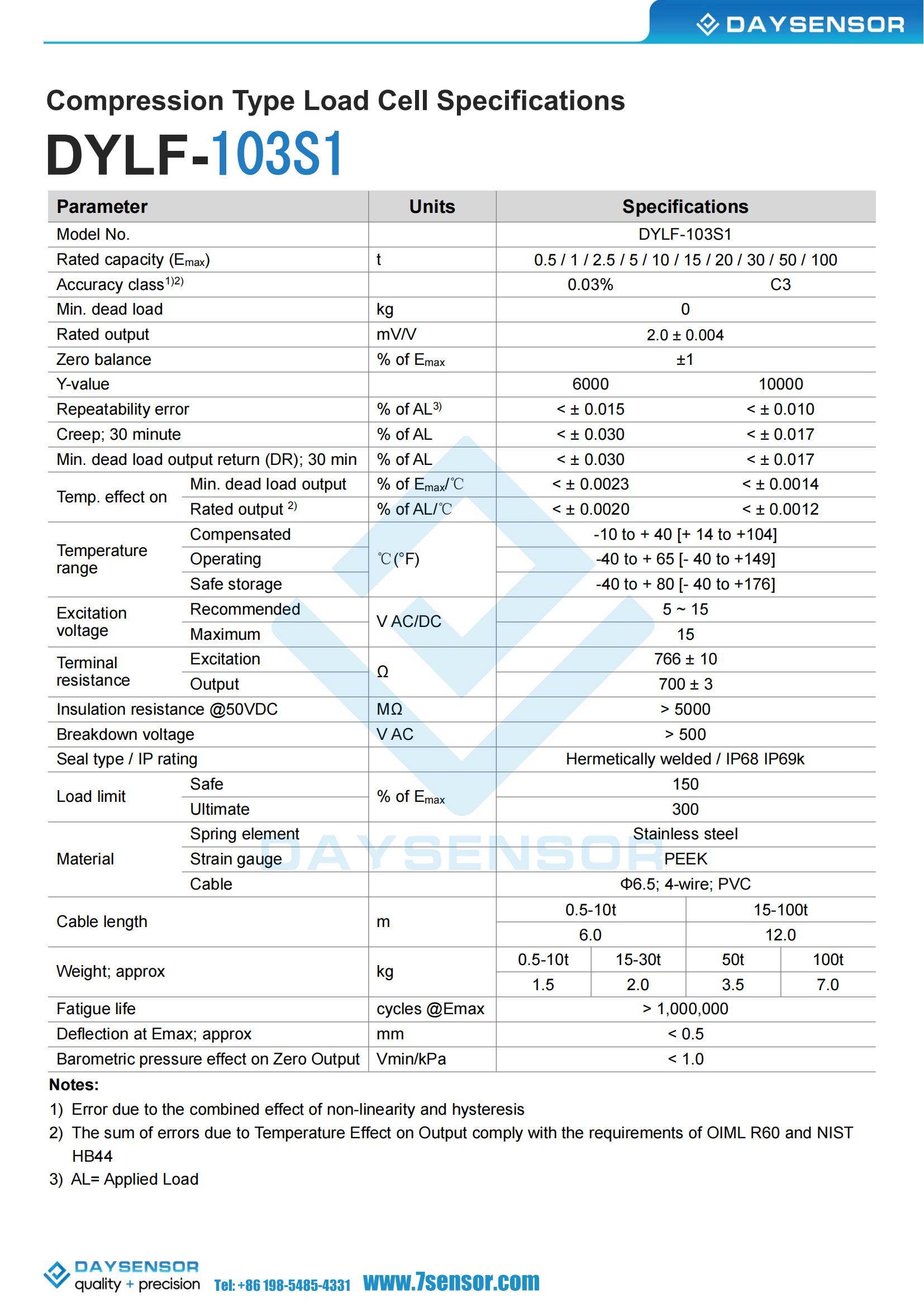

Parameter

英文-DYLF-103S1系列_02

force sensor load cell Compression Type Load Cell Accuracy class:C3
