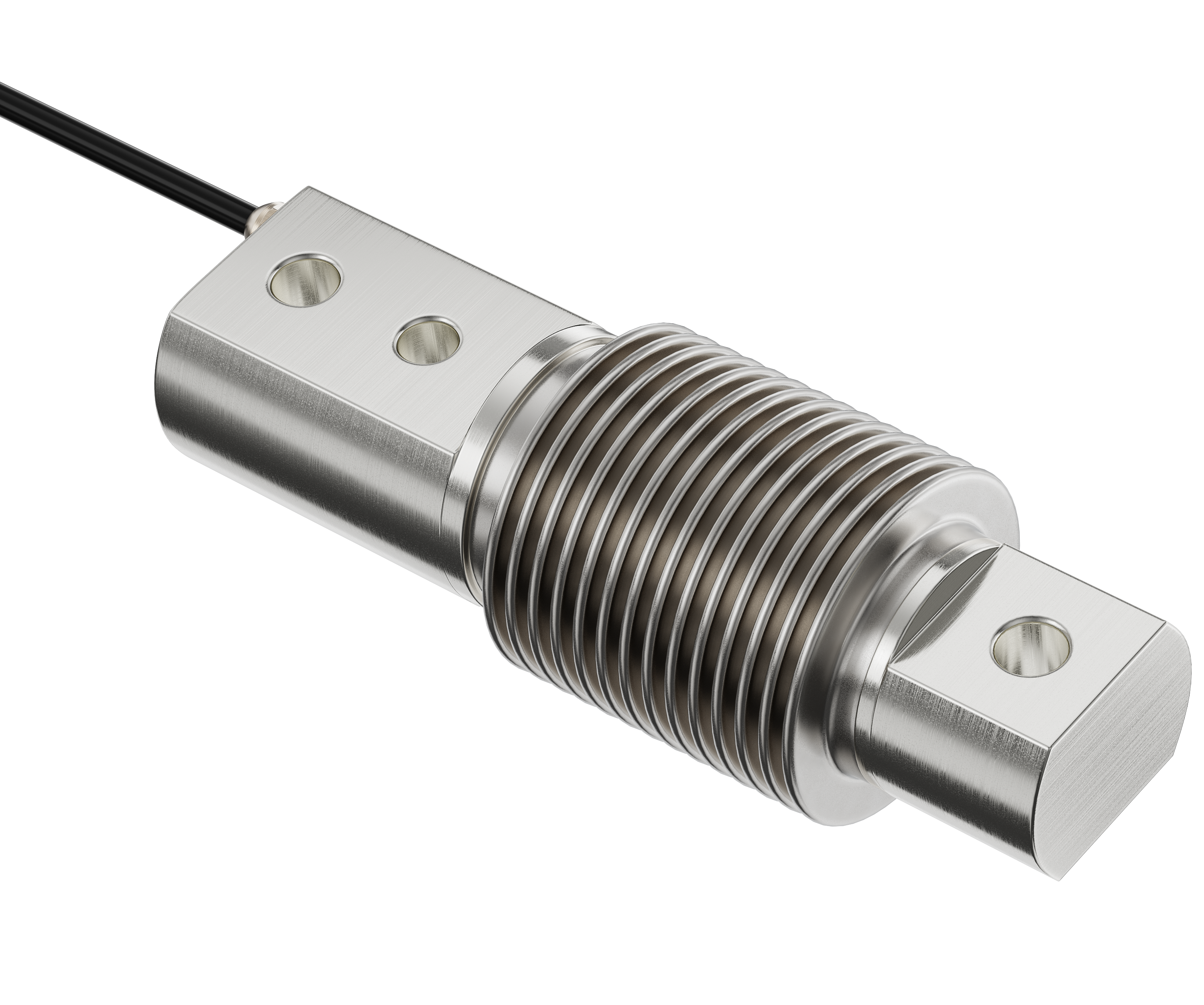

Accuracy class:C3,C6 DYBW-106S1 Bending Beam Load Cell
Views: 0 Author: Daysensor Publish Time: 2025-07-23 Origin: Daysensor
Inquire
Special features
● Stainless steel construction
● Hermetically sealed (lP68/69k)
● Wide range of capacities from 10kg to 500kg
● Cable connector 1/4-18NPT
● High accuracy (verifiable up to 6000 divisions)
● Small linearity hysteresis and creep; good long-term stability
● Applications：Industrial packing scale, belt scale, vessel and tank weighing systems.
Option
● Alloy steel construction
● 6-wire circuit
● Explosion-proof versions Ex/ATEX standard

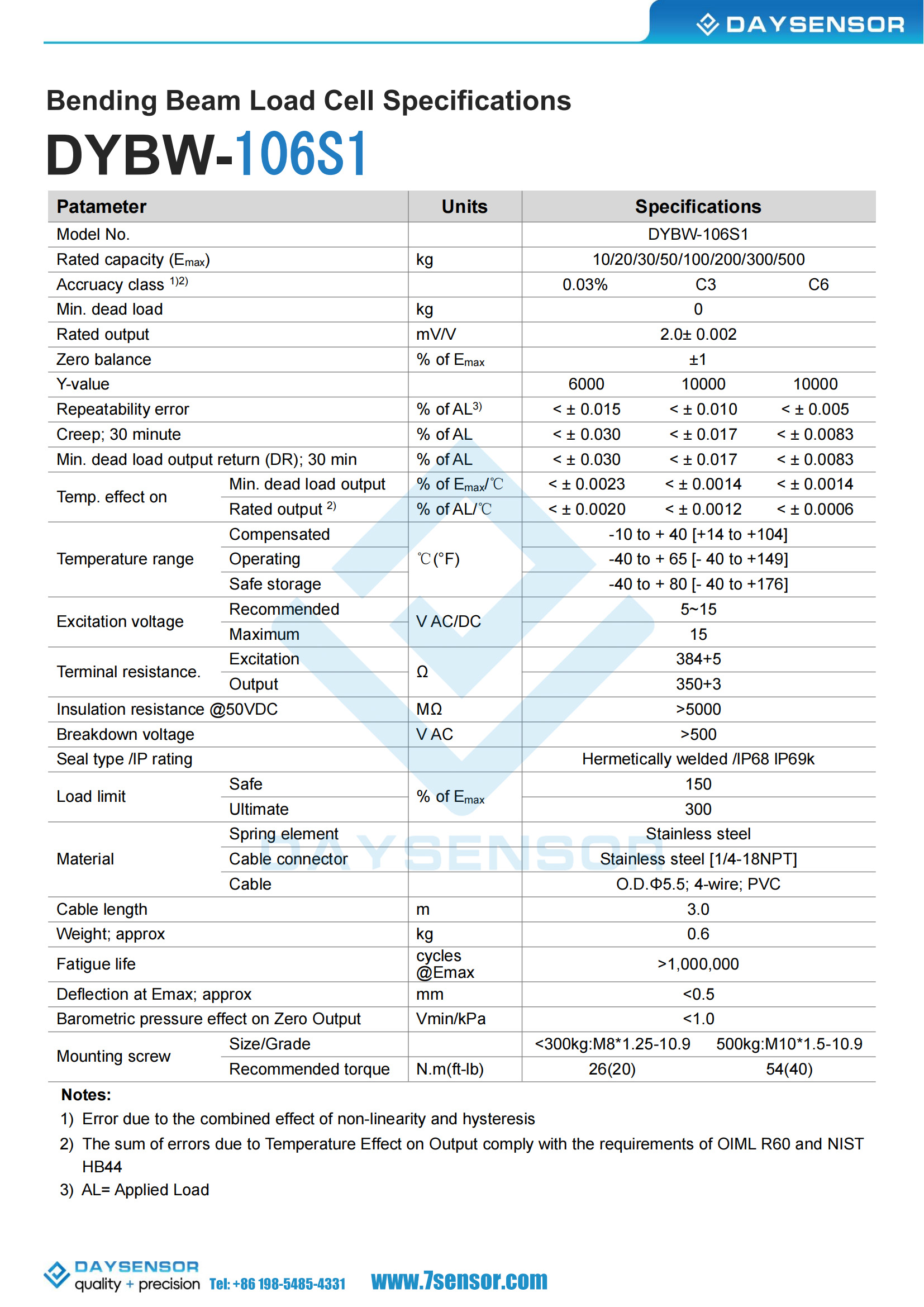

Bending Beam Load Cell Specifications
