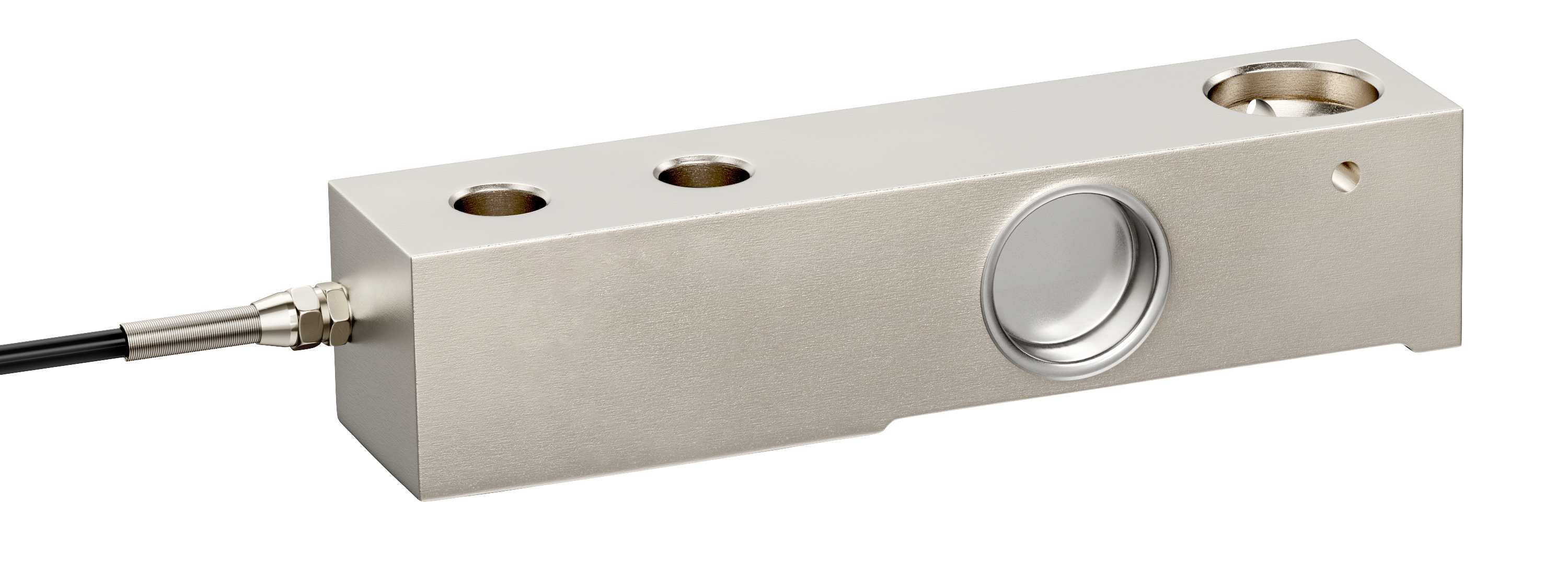

Accuracy class:C3,C5 DYB415 Single-Ended Beam Load

Special features

● Alloy steel nickel plated construction

● Max. capacities from 110kg to 4.4t

● Complies with OIML R60 regulations

up to 5000d divisions

● Hermetically sealed (IP68)

● Cable connector 1/4-18NPT

● Small linearity hysteresis and creep;

goo long-term stability

● Applications: Industrial platform scale, vessel and tank weighing systems

Option

● Stainless steel construction(Interchangeable DYHLJ)

● Six-wire circuit

● Explosion-proof versions per Ex/ATEX standard
