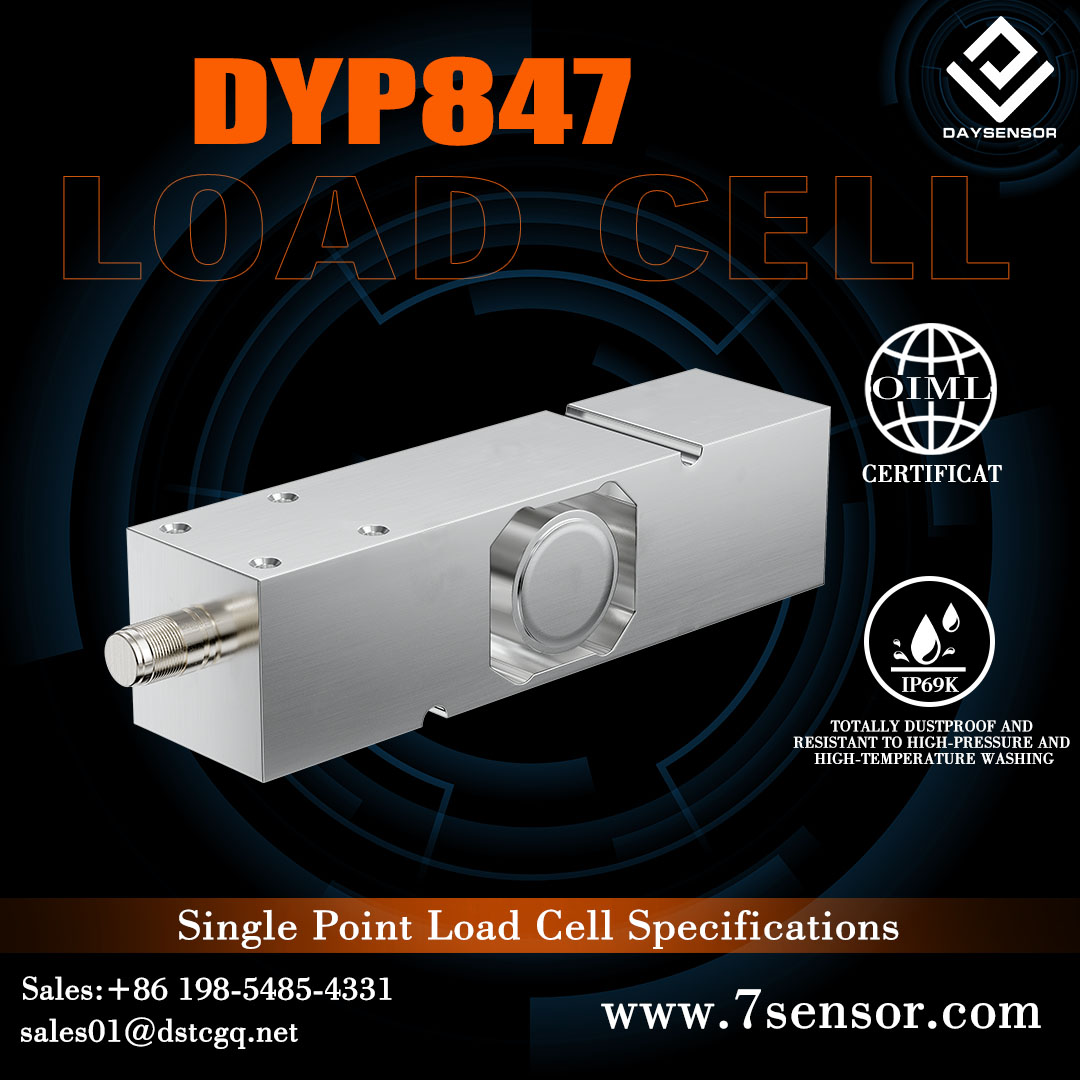

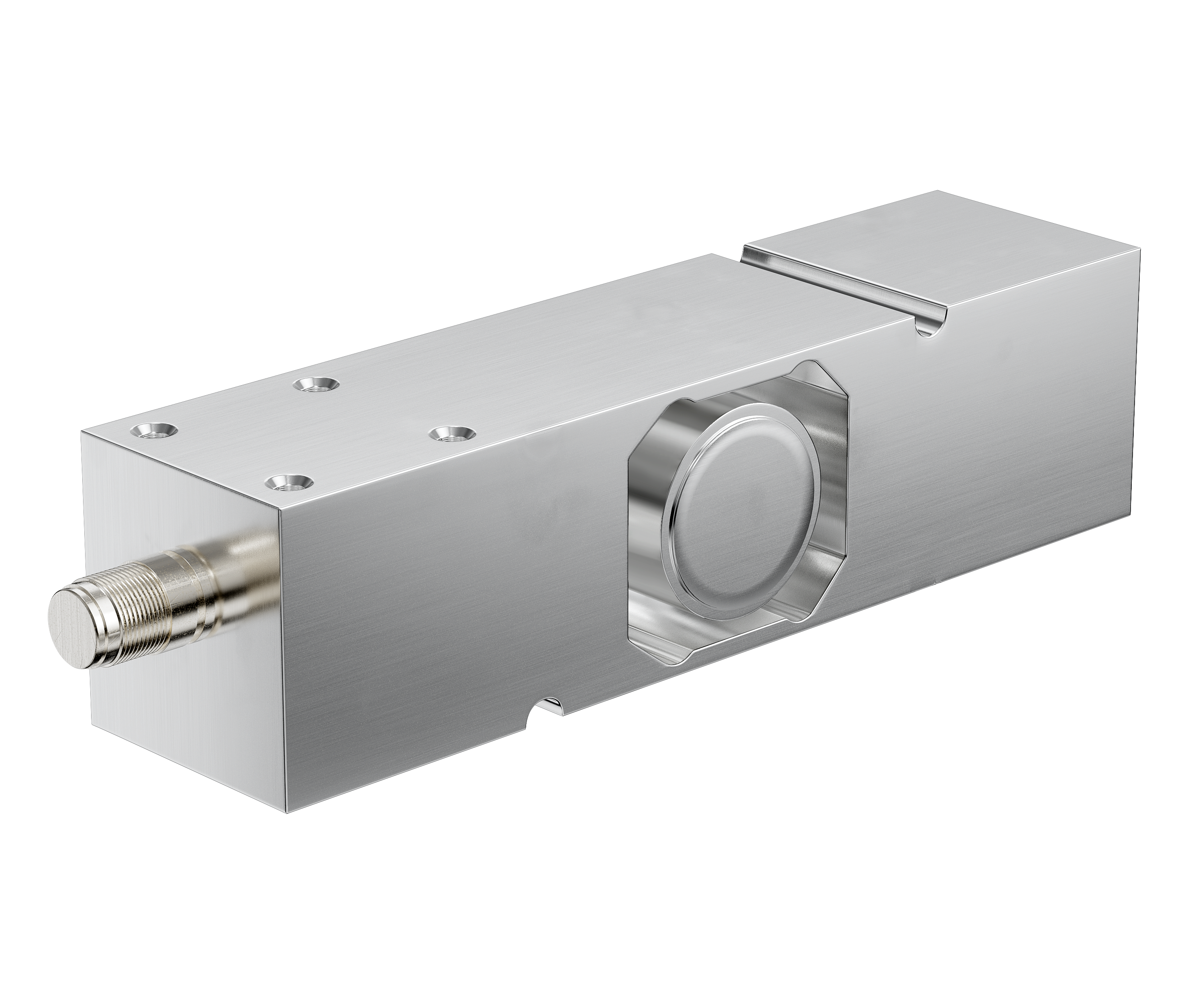

Accuracy Class:C3,C5 DYP847 Single Point Load Cell

Special features

● Stainless steel construction

● Max. capacities from 60kg to 200kg

● Complies with OIML R60 regulations up to 5000d divisions

● Hermetically sealed (IP68; IP69K)

● Quick-Connect cable connector(Glass-to-Metal seal)

● Off-center load compensated(OIML R76)

● Applications: platform scale, packaging scale and food/medicine and other washable environments

Option

● Aligned output, suitable for parallel connection

● Various cable lengths

● Explosion-proof versions

Product Description

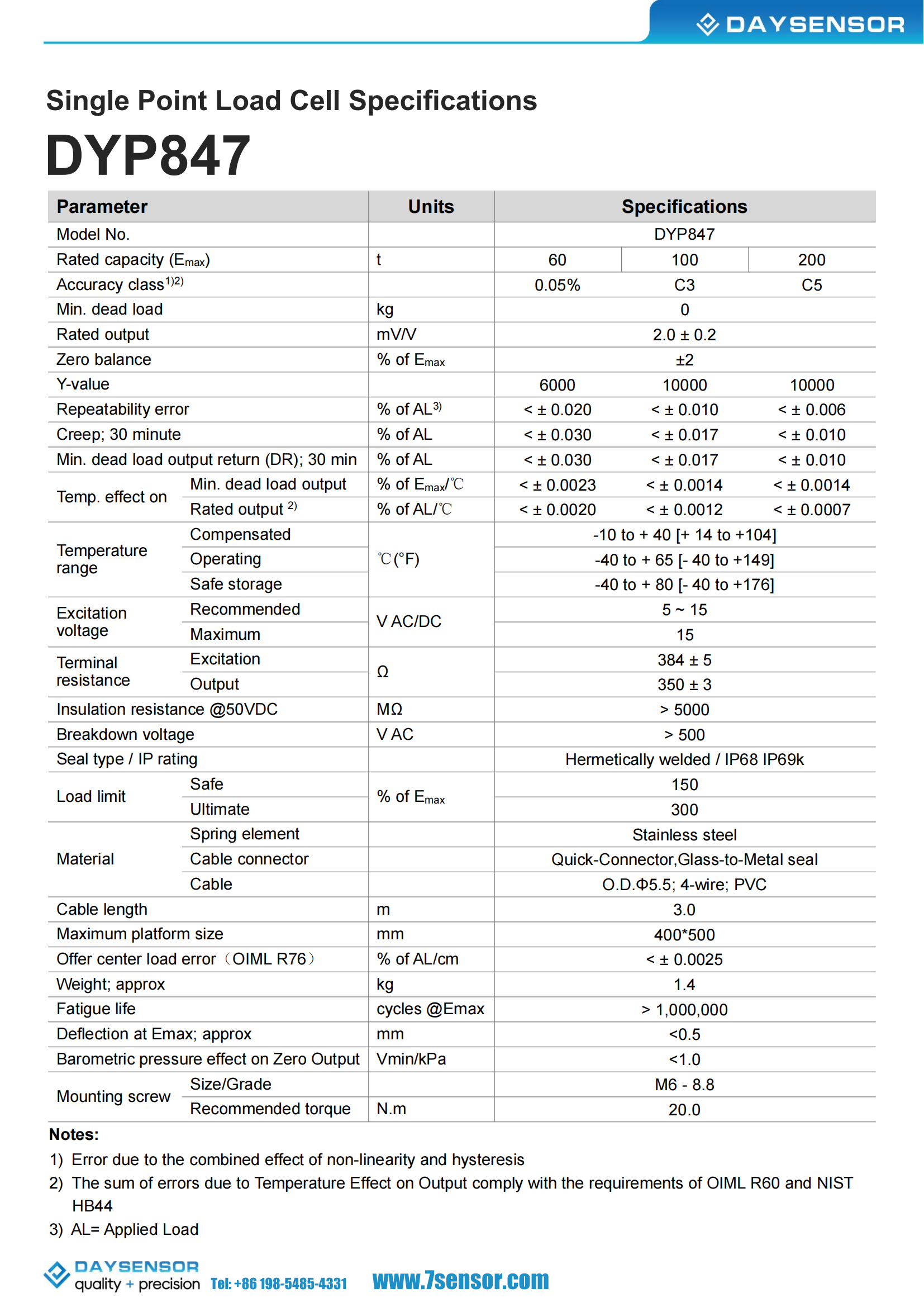

Parameter
